2009 to 2014 Ford F150 4WD Complete Lowering Kit

BellTech
KitFo094wd
Add to cart
  • Description
  • More

Lowering Kit Builder Tool. The Easy Way to Build Your Lowering Kit

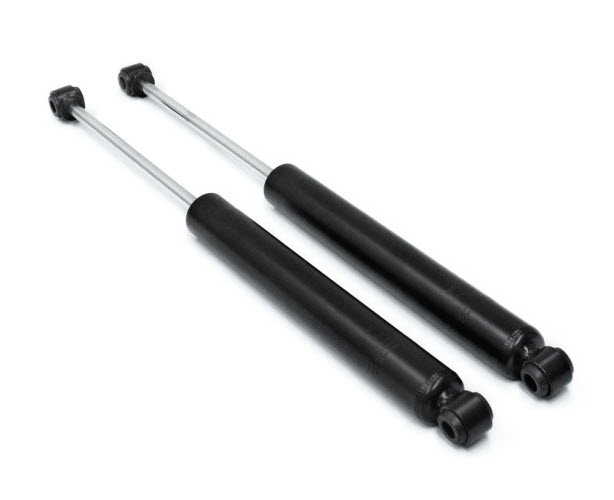

Our lowering selection tool for the 2009 to 2014 Ford F150 4WD Complete Lowering Kit. Each kit can be selected with or without either Belltech NitroDrop 2 shocks, or Belltech Street Performance shocks.

Drop your 2009, 2010, 2011, 2012, 2013 or 2014 Ford F150 4WD as low as 3 inches on the front and 5 and a half inches on the rear.

The Lowering Kit is available in the following configurations.

The rear can be dropped by 2 inches using shackles.

To lower both the front and the rear by 2 inches, struts and shackles are used.

The front lowered by 2 inches with struts, the rear can be lowered by 3 inches with shackles.

To lower the front 3 inches and the rear 4 inches use lowering Struts and a 4 inch flip kit

For this make and model, to lower the front by 3 inches and the rear by 5 inches, we use a DJM lowering kit that includes control arms for the front and a flip kit for the rear.

2009 to 2014 Ford F150 4WD Complete Lowering Kit

The front suspension in these trucks had only very slight changes from the previous body design and they are still using a coil over strut in the front on 4WD models. Lower them with coils, control arms or struts. Just use some caution on the amount of drop on the 4WDs due to the CV axles. In 2014 they changed the lower strut mount meaning that you need to use the 2015 style struts.

In the back you can get 2 inches of drop by replacing the shackles, 3 inches drop on the by using shackles and removing the blocks and anything farther requires a flip kit to get 4 to 7 inches of drop. Belltech offers a 4" flip kit that includes a raising hanger so if you leave that part out you will get 5 inches of drop.
